Classes and methods for handling networks or graphs whose nodes are geographical (i.e. locations in the globe). Create, transform, plot.
You can install the released version of geonetwork from
CRAN with:
install.packages("geonetwork")Alternatively, install the latest development version with:
install.packages("geonetwork", repos = 'https://cirad-astre.r-universe.dev')A geonetwork is an object of class igraph
whose nodes have geospatial attributes (i.e. coordinates and
CRS).
Consider the distances (in km) between 21 cities in Europe from the
datasets package. A simple way of constructing a
geonetwork is by combining a data.frame of
nodes with one of edges:
## Use OpenStreetMap's Nominatim service through the package {tmaptools}
## to retrieve coordinates of the cities.
## Restrict search to Europe (to prevent homonym cities to show up)
cities <- tmaptools::geocode_OSM(
paste(
labels(datasets::eurodist),
"viewbox=-31.64063%2C60.93043%2C93.16406%2C31.65338",
sep = "&"
)
)
cities$city <- labels(datasets::eurodist)
distances <-
expand.grid(
origin = labels(datasets::eurodist),
destin = labels(datasets::eurodist),
stringsAsFactors = FALSE,
KEEP.OUT.ATTRS = FALSE
)
distances <-
cbind(
distances[distances$destin < distances$origin,],
distance = as.numeric(datasets::eurodist)
)
str(cities)
#> 'data.frame': 21 obs. of 8 variables:
#> $ query : chr "Athens&viewbox=-31.64063%2C60.93043%2C93.16406%2C31.65338" "Barcelona&viewbox=-31.64063%2C60.93043%2C93.16406%2C31.65338" "Brussels&viewbox=-31.64063%2C60.93043%2C93.16406%2C31.65338" "Calais&viewbox=-31.64063%2C60.93043%2C93.16406%2C31.65338" ...
#> $ lat : num 38 41.4 50.8 51 49.5 ...
#> $ lon : num 23.73 2.18 4.35 1.85 -1.58 ...
#> $ lat_min: num 37.8 41.3 50.8 50.9 49.3 ...
#> $ lat_max: num 38.1 41.5 50.9 51 49.7 ...
#> $ lon_min: num 23.57 2.05 4.31 1.81 -1.96 ...
#> $ lon_max: num 23.89 2.23 4.44 1.93 -1.14 ...
#> $ city : chr "Athens" "Barcelona" "Brussels" "Calais" ...
str(distances)
#> 'data.frame': 210 obs. of 3 variables:
#> $ origin : chr "Barcelona" "Brussels" "Calais" "Cherbourg" ...
#> $ destin : chr "Athens" "Athens" "Athens" "Athens" ...
#> $ distance: num 3313 2963 3175 3339 2762 ...
eurodist <- geonetwork(
distances,
nodes = cities[, c("city", "lon", "lat")],
directed = FALSE
)Several assumptions were made here unless otherwise specified:
The first column in cities was matched with the
first two columns in distances.
The second and third columns in cities were assumed
to be longitude and latitude in decimal degrees in a WGS84 CRS.
The remaining column in distances was treated as an
edge weight.

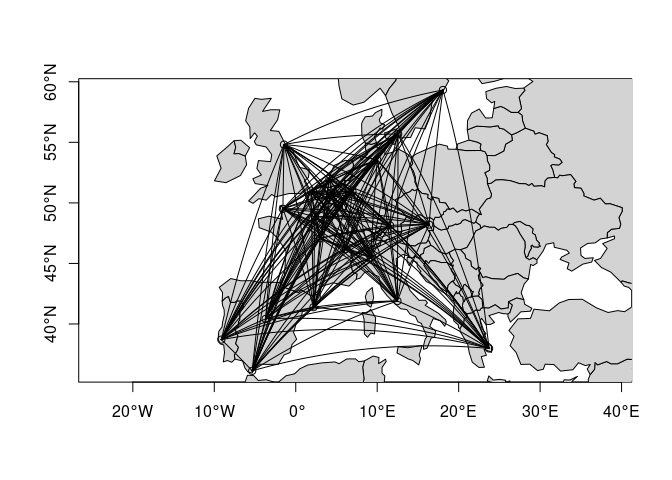

Now we can readily plot the network, optionally with some additional geographical layer for context:
## Base system
plot(eurodist, axes = TRUE, type = "n")
plot(sf::st_geometry(spData::world), col = "lightgray", add = TRUE)
plot(eurodist, axes = TRUE, add = TRUE)
